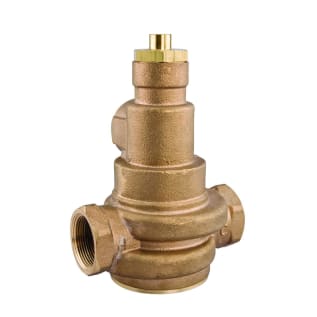

WATTS® 0559125 LFN170 Master Tempering Valve, 1 in Nominal, NPT End Style, 125 psi Pressure, 4 gpm Flow Rate, Brass Body, Domestic
WATTS®, 0559125, Master Tempering Valve, Series: LFN170, 1 in Nominal, NPT End Style, 125 psi Pressure, 5 to 200 deg F, 4 gpm Flow Rate, Media: Water, Brass Body, Domestic
- Paraffin-based thermostat to sense and adjust outlet temperature
- Dirt and lime resistant poppet and seat design
- Vandal-resistant, locking mechanism to secure temperature setting
- Factory tested
- Less check stop
- 68 Gal per minute capacity at 45 psiD
- Standard/Approvals: ASSE 1017|CSA B125.3|IAPMO/cUPC Listed|PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
- WARRANTY: Limited
WATTS®, 0559125, Master Tempering Valve, Series: LFN170, 1 in Nominal, NPT End Style, 125 psi Pressure, 5 to 200 deg F, 4 gpm Flow Rate, Media: Water, Brass Body, Domestic
This 1 in lead free master tempering valve is designed for use in commercial and institutional applications, to mix hot and cold water to reduce high service water temperature to the building distribution piping system. It is designed for installation at the hot water source. It features a lead free brass body construction, a copper paraffin thermostat assembly and a lockable temperature adjustment for increased safety. Polysulfone internals resist excessive heat, liming and corrosion and a single-seat design ensures tight shut off in the event of cold water supply loss. Listed to ASSE 1017 and IAPMO cUPC in compliance with CSA B125.3. The temperature range is 90 to 180 deg F and the maximum pressure is 125 psi.
- Brand: WATTS®Body Material: BrassDomestic/Import: DomesticEnd Style: NPTFlow Rate: 4Media: WaterNominal Size: 1Pressure Rating: 125Series: LFN170M3Temperature Rating: 5 to 200
