1314914

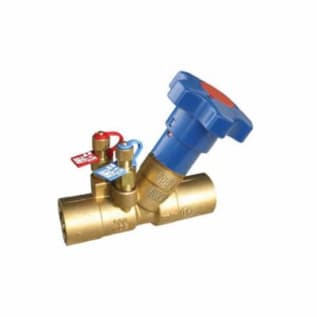

RWV® 9519AB 1/2 Hydronic Balancing Valve, 1/2 in, Solder, 300 lb WOG, 2.35 gpm, DZR Brass Body, Import
Hydronic Balancing Valves
MPN: 1314914 5264330 MFG #: 9519AB 1/2
141.02000 / ea
  • Actuator Type: Adjustable Handwheel
  • Body Material: DZR Brass
  • Dimensions: 3.74 in L
  • Domestic/Import: Import
  • End Style: Solder
  • Flow Rate: 2.35
  • Media: Water
  • Nominal Size: 1/2
  • Series: 9519AB
  • Softgoods Material: PTFE Disc Gasket/EPDM Perox Disc O-Ring
  • Temperature Rating: 15 to 260
  • Trim Material: DZR Brass
  • Pressure Class: 300 lb WOG

RWV® Hydronic Balancing Valve, Series: 9519AB, 1/2 in Nominal, Solder, 300 lb WOG, 15 to 260 deg F, 2.35 gpm, Media: Water, Adjustable Handwheel Actuator, DZR Brass Body, DZR Brass Trim, PTFE Disc Gasket/EPDM Perox Disc O-Ring, 3.74 in L, Import

QTY
  • Features
  • Fixed orifice design
  • Integral memory stop
  • Low lead DZR brass Fixed orifice double regulating globe valve
  • Positive shut-off with memory stop
  • Intended for HVAC and domestic water use
  • Tolerance on nominal CVS +/-3% (test according to BS7350)
  • Standard/Approvals: ASME B16.22, BS7350, BAA Requirement, UNS C27453 Body/Disc, ASME B124 C37700 Stem
