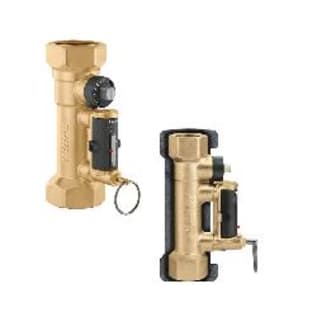

Caleffi QuickSetter™ 132552A Balancing Valve With Flow Meter, 3/4 in, FNPT, 150 psi, 2 to 7 gpm, Brass Body, Import
Hydronic Balancing Valves
MPN: 1050508 4315365 MFG #: 132552A
219.00000 / ea
  • Body Material: Brass
  • Dimensions: 5-3/4 in H
  • Domestic/Import: Import
  • End Style: FNPT
  • Flow Rate: 2 to 7
  • Media: Water/Glycol Mixture
  • Nominal Size: 3/4
  • Pressure Rating: 150
  • Series: 132
  • Softgoods Material: EPDM/PTFE Seat
  • Temperature Rating: 14 to 230
  • Trim Material: Chrome Plated Brass

Caleffi QuickSetter™ Balancing Valve, Series: 132, 3/4 in Nominal, FNPT, 150 psi, 14 to 230 deg F, 2 to 7 gpm, Media: Water/Glycol Solution, Brass Body, Chrome Plated Brass Trim, EPDM/PTFE Seat, 5-3/4 in H, Import

The 132 series balancing valve accurately sets the flow rate of heating and cooling transfer fluid supplied to fan coils and terminal units or where flow balancing is required in solar thermal systems. Proper hydronic system balancing ensures that the system operates according to design specifications, providing satisfactory thermal comfort with low energy consumption. The flow meter is housed in a bypass circuit on the valve body and can be shut off during normal operation. The flow meter permits fast and easy circuit balancing without added differential pressure gauges and reference charts. The balancing valve is furnished with a preformed insulation shell to optimize thermal performance for both hot and cold water systems.

QTY
  • Features
  • Videos
  • Direct reading of flow rate
  • No sight gauge clouding or scaling
  • Brass valve body and flow meter
  • Rotatable valve for flow rate adjustment
  • Graduated scale flow meter with magnetic movement flow rate indicator
  • Maximum percentage of glycol: 50%
  • With pre-formed shell insulation in expanded closed cell PE-X
  • ± 10% measurement accuracy
  • Standard/Approvals: ANAB Accredited ISO 9001|BSI FM 21654|ISO 9001 No 0003
