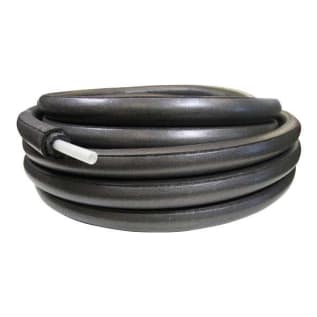

Uponor Wirsbo® hePEX™ A6161500 Pre-Insulated Coil With 1-1/2 in Insulation, 1-1/2 in, 75 ft Coil L, 80 psi, Cross Linked Polyethylene, Domestic
Uponor Wirsbo® hePEX™ Pre-Insulated Coil, 1-1/2 in Nominal, 4.93 in Outside Dia, 75 ft Coil Length, 80 psi Working, 200 deg F, Cross Linked Polyethylene, Domestic
Documents
- Polyethylene foam insulation
- 0.25 Btu in/hr/sq-ft/deg F thermal conductivity
- 1.1 in/10 deg F/100 ft linear expansion rate
- 200 deg F at 80 psi, 180 deg F at 100 psi, 73.4 deg F at 160 psi hydrostatic ratings
- 7 Btu/hr/ft heat loss at 70 deg F delta T
- 11.2 R-value
- 54 x 13-1/2 in coil
- Use ProPEX® fittings to connect the piping
- Crosslinked polyethylene (PEX-a) engel method service pipe
- Standard/Approvals: ASHRAE 90.1-2013|ASTM F876|ASTM F877|ASTM F1960|ASTM F2023|CCMC|CSA B137.5|cNSFus-rfh|cNSFus-pw|DIN 4726/9|ETL|HUD|IAPMO Listed|ICC-ES|ITS|ANSI/NSF 14|ANSI/NSF 61|PPI TR-4|IPC|IRC|IMC|NSPC|NBC of Canada|NPC of Canada|UFGS|UMC|UPC Listed|WH|UL Listed
Uponor Wirsbo® hePEX™ Pre-Insulated Coil, 1-1/2 in Nominal, 4.93 in Outside Dia, 75 ft Coil Length, 80 psi Working, 200 deg F, Cross Linked Polyethylene, Domestic
Pre-insulated Wirsbo® hePEX™ features oxygen-barrier PEX pipe encased in polyethylene-foam insulation to meet ASHRAE 90.1-2013 energy-code requirements for hydronic piping and radiant heating/cooling applications. The piping is approved for direct burial in soil provided it is not exposed to groundwater. Uponor recommends adding 1/2 in of insulation to accommodate for foam compression in direct-burial applications.
- Brand: UponorDomestic/Import: DomesticLength: 75 ft CoilMaterial: Cross Linked PolyethyleneNominal Size: 1-1/2Outside Diameter: 4.93Temperature Rating: 200Working Pressure: 80
