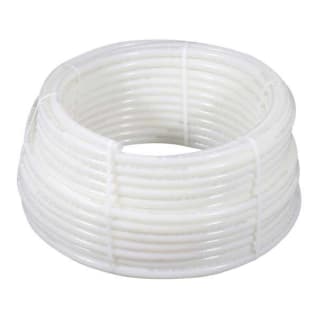

Uponor Wirsbo® hePEX™ A1140313 Tubing, 5/16 in, 100 ft Coil L, 80 psi, Cross Linked Polyethylene, Domestic
Uponor Wirsbo® hePEX™ Tubing, 5/16 in Nominal, 0.292 in Inside Dia, 0.43 in Outside Dia, 100 ft Coil Length, 80 psi Working, 200 deg F, Cross Linked Polyethylene, Domestic
Documents
- Crosslinked polyethylene (PEX-a) engel method material
- 0.22 Btu in/hr/sq-ft/deg F thermal conductivity
- 1.1 in/10 deg F/100 ft linear expansion rate
- 200 deg F at 80 psi, 180 deg F at 100 psi, 73.4 deg F at 160 psi hydrostatic ratings
- Standard/Approvals: ANSI/NSF 61-9/372|ANSI A112.18.1M|CSA Certified|PROP65: This product can expose you to chemicals including Lead|Nickel (Metallic) and Di(2-ethylhexyl)phthalate (DEHP), which are known to the State of California to cause cancer, Lead and Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Uponor Wirsbo® hePEX™ Tubing, 5/16 in Nominal, 0.292 in Inside Dia, 0.43 in Outside Dia, 100 ft Coil Length, 80 psi Working, 200 deg F, Cross Linked Polyethylene, Domestic
Wirsbo® hePEX™ features an oxygen barrier that conforms to DIN 4726 for use in closed-loop hydronic piping and radiant heating and cooling applications. The tubing is rated and listed by the Hydrostatic Stress Board of PPI at 200 deg F at 80psi, 180 deg F at 100psi and 73.4 deg F at 160psi. It is compatible with Uponor ProPEX® and QS-style fittings and is manufactured in full compliance to ASTM F876 and F877. It is also listed to NSF 61 for potable-water applications.
- Brand: UponorDomestic/Import: DomesticInside Diameter: 0.292Length: 100Material: Cross Linked PolyethyleneNominal Size: 5/16Outside Diameter: 0.43Temperature Rating: 200Working Pressure: 80
