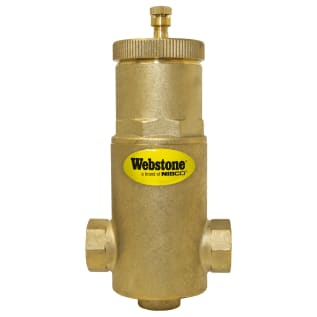

Webstone H-74004 7400 Horizontal Air Separator, 1 in Nominal, FNPT x FNPT Connection, 150 psi Working, 250 deg F, Forged Brass, Import
Webstone, H-74004, Air Separator, Horizontal, Series: 7400, 1 in Nominal, FNPT x FNPT Connection, 150 psi Working, 250 deg F, Suitable Media: Air, 10 gpm Flow Rate, Forged Brass, 6-1/4 in H x 3-3/4 in W Dimensions, Import
- Flow may be directed into either side of the unit
- Replacement vent assemblies are available
- Guaranteed for life
- Mounting air volume forces the water level in the top of the unit to drop, lowering the float
- The alignment pin guides the float as it descends, preventing jams and ensuring smooth operation
- As the float drops, the vent head opens, releasing the air collected in the unit
- The Webstone air separator uses a unique coalescing medium to capture both micro bubbles and static air from within a hydronic heating system
- Reduces noise and wear on system components, improves system
- Minimizes customer call backs and requires no regular maintenance
- Standard/Approvals: ANSI B1.20.1|ISO 9001 Certified
- WARRANTY: Lifetime
Webstone, H-74004, Air Separator, Horizontal, Series: 7400, 1 in Nominal, FNPT x FNPT Connection, 150 psi Working, 250 deg F, Suitable Media: Air, 10 gpm Flow Rate, Forged Brass, 6-1/4 in H x 3-3/4 in W Dimensions, Import
Designed for residential, commercial or industrial use to quickly extract micro bubbles and static air from a hydronic heating system. The Air Separator must be installed in a straight run of horizontal piping and positioned precisely upright. Designated lengths of straight piping before and after the unit are not required. Neither side is designated as an inlet or outlet; the flow may be directed in either direction. Threaded ends comply with ANSI B1.20.1.
- Brand:Â WebstoneConnection Type:Â IPSDimensions:Â 6-1/4 in H x 3-3/4 in WMaterial:Â Forged BrassNominal Size:Â 1Series:Â 7400Suitable Media:Â AirWorking Pressure:Â 150Domestic/Import:Â ImportFlow Rate:Â 10
