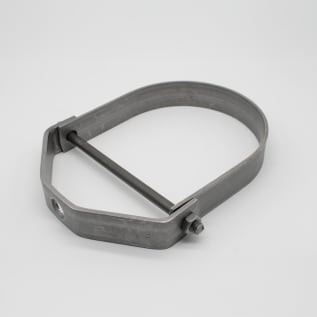

PHD 450 0600PL Standard Clevis Hanger, 6 in Pipe, 3/4 in Rod, 1940 lb Load, Carbon Steel, Plain
PHD Clevis Hangers, Standard, FIG 450 Series, 6 in Pipe, 3/4 in Rod, 1940 lb, Carbon Steel, Plain, 10-1/8 in H
Documents
- Underwriters' laboratories listed in the US (UL) and factory mutual approved for 2-1/2 to 8 in only
- Use of an upper locknut ensures proper performance
- When an over-sized clevis is used, a pipe spacer should be placed over the clevis bolt to prevent the lower U-strap from moving inward
- 1/2 in cross bolt
- Low carbon steel
- Designed for the suspension of non-insulated stationary pipe lines
- Standard/Approvals: ANSI/SP 69/58 (Type 1)|Federal A-A-1192A (Type 1)|FM Approved|UL Listed
- WARRANTY: 1 Year
PHD Clevis Hangers, Standard, FIG 450 Series, 6 in Pipe, 3/4 in Rod, 1940 lb, Carbon Steel, Plain, 10-1/8 in H
- Brand:Â PHDDimensions:Â 10-1/8 in HFinish:Â PlainLoad Capacity:Â 1940Material:Â Carbon SteelPipe Size:Â 6Rod Size:Â 3/4Series:Â FIG 450Type:Â Standard
