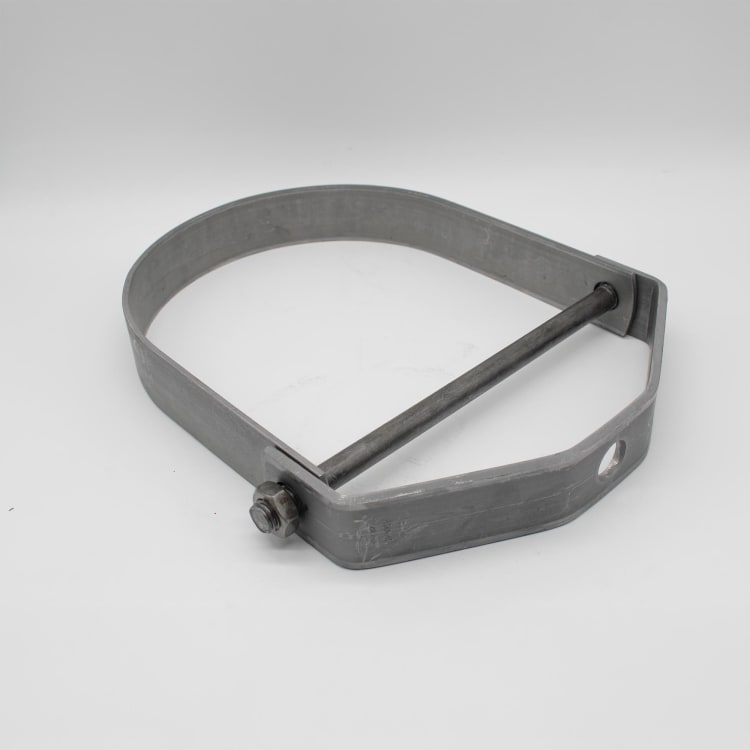

PHD 450 0800PL Standard Clevis Hanger, 8 in Pipe, 3/4 in Rod, 2000 lb Load, Carbon Steel, Plain

15539 MFG #: 450 0800PL
$149.82 / ea
PHD 450 0800PL Standard Clevis Hanger, 8 in Pipe, 3/4 in Rod, 2000 lb Load, Carbon Steel, Plain
  • Dimensions: 12-7/8 in H
  • Finish: Plain
  • Load Capacity: 2000
  • Material: Carbon Steel
  • Pipe Size: 8
  • Rod Size: 3/4
  • Series: FIG 450
  • Type: Standard

PHD Clevis Hangers, Standard, FIG 450 Series, 8 in Pipe, 3/4 in Rod, 2000 lb, Carbon Steel, Plain, 12-7/8 in H

Designed for the suspension of non-insulated stationary pipe lines.

Pack: 5/BX
QTY
Add to List
  • Features
  • Underwriters' laboratories listed in the US (UL) and factory mutual approved for 2-1/2 to 8 in only
  • Use of an upper locknut ensures proper performance
  • When an over-sized clevis is used, a pipe spacer should be placed over the clevis bolt to prevent the lower U-strap from moving inward
  • 5/8 in cross bolt
  • Low carbon steel
  • Standard/Approvals: ANSI/SP 69/58 (Type 1), Federal A-A-1192A (Type 1), FM Approved, UL Listed
  • WARRANTY: 1 Year
