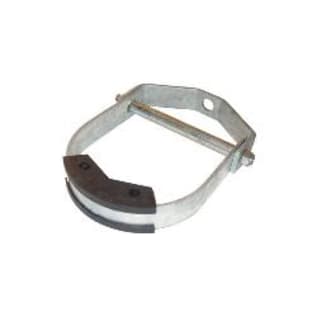

Anvil® 0500360367 FIG 260 ISS Clevis Hanger With Insulation Saddle System, 5 in Pipe, 5/8 in Rod, 750 lb Load, Carbon Steel, Galvanized

1448449 MFG #: 0500360367
$77.21 / ea
Anvil® 0500360367 FIG 260 ISS Clevis Hanger With Insulation Saddle System, 5 in Pipe, 5/8 in Rod, 750 lb Load, Carbon Steel, Galvanized
  • Dimensions: 8-15/16 in L
  • Finish: Galvanized
  • Load Capacity: 750
  • Material: Carbon Steel
  • Pipe Size: 5
  • Rod Size: 5/8
  • Series: FIG 260 ISS
  • Temperature Rating: 40 to 200

Anvil® Clevis Hanger, Series: FIG 260 ISS, 5 in Pipe, 5/8 in Rod, 750 lb, Carbon Steel, Galvanized, 8-15/16 in L, 40 to 200 deg F

QTY
Add to List
  • Features
  • Carbon steel with high impact glass reinforced polypropylene saddle and carbon steel pipe space
  • V-block design cradles pipe through out the entire erection process
  • Clevis bolt spacer included as standard keeps the clevis lower strap from collapsing
  • Eliminates of wood blocks and standard shields, costly calcium silicate inserts, re-leveling of piping at each individual hanger after insulation is completed
  • Hanger load nut above clevis must be tightened securely to assure proper performance
  • Position the pipe on the saddle
  • Square cut adjoining insulation and butt the insulation ends to each other
  • Insulation joint is coated, caulked and taped following standard insulation practice used on flanges and valves
  • Notch insulation to fit around the saddle
  • Wood blocks and standard shields
  • Costly calcium silicate inserts
  • Re-leveling of piping at each individual hanger after insulation is completed
  • Anvil insulation saddle system clevises are fully tested and rated for a temperature range from 40 to 200 deg F
  • Extensive field-testing and inspection has been performed to confirm that the integrity of the insulation vapor barrier for chilled water systems are sustained with the 260 ISS
  • Each insulation joint should be properly coated, caulked and taped
  • The Anvil 260 (ISS) Insulation Saddle System reduces your overall installation time and greatly simplifies the way you insulate copper and steel pipe systems
  • Contractors can support insulated pipe with less parts and labor
  • The revolutionary design of the 260 ISS spreads the load evenly over the lower strap of the clevis
  • Standard/Approvals: ASTM E84 Class 1 25/60|UL E94V
