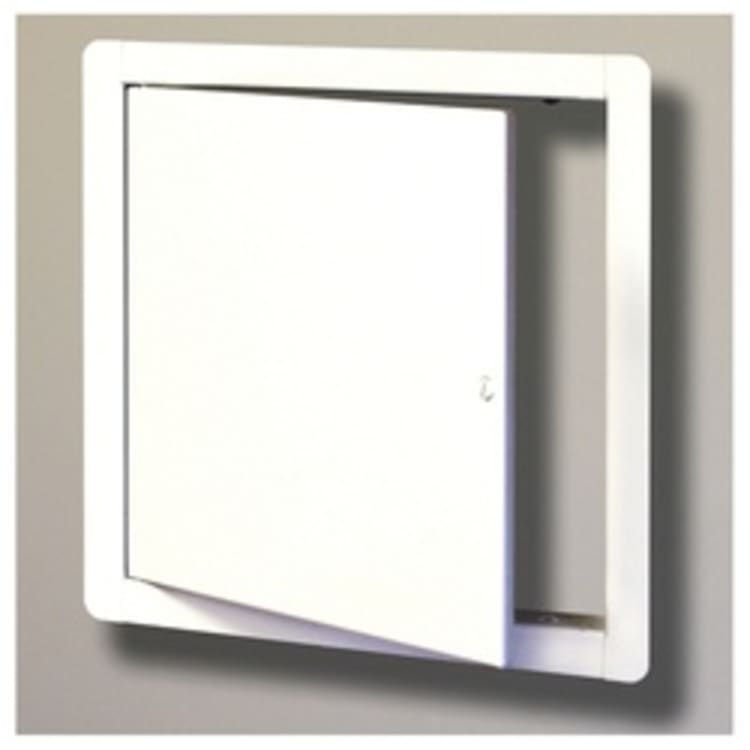

MIFAB® UASS1212 Universal Access Door, Concealed Pivot Pin Hinge, 1, 12-3/8 in W x 12-3/8 in H Rough Opening

46128 MFG #: UASS1212
$57.19 / ea
MIFAB® UASS1212 Universal Access Door, Concealed Pivot Pin Hinge, 1, 12-3/8 in W x 12-3/8 in H Rough Opening
  • Color: White
  • Finish: Brushed Satin
  • Height: 12
  • Hinge Type: Concealed Pivot Pin
  • Latch: 1
  • Material: Stainless Steel
  • Rough Opening Height: 12-3/8
  • Rough Opening Width: 12-3/8
  • Series: UASS
  • Type: Universal
  • Width: 12

MIFAB® Access Door, Universal, Series: UASS, 12 in Width, 12 in Height, Concealed Pivot Pin Hinge, 1 Latch, 12-3/8 in Rough Opening Width, 12-3/8 in Rough Opening Height, Stainless Steel, Brushed Satin, White

MIFAB Series UA is a multi-purpose access door. It is designed for flush installation into drywall, block or tile, walls and ceilings. The door features rounded safety corners, concealed hinge, flush with frame fit, a unique white finish and a 1/4 in turn back in the door panel for extra rigidity and safety.

QTY
Add to List
  • Features
  • The UASS stainless steel Series is 16 gauge 304 stainless steel door and frame
  • Flush to frame
  • Turned back around edges for extra rigidity
  • The frame has pre-punched mounting holes for simple installation
  • Standard flush mounted, screwdriver operated cam
  • 14-1/8 in H x 14-1/8 in W overall
  • Note: The hinge is always furnished on the 12 in or height (Longer) dimension unless otherwise specified
  • Standard/Approvals: ASSE Specified, CSA Certified, Mechanical Contractors Association of America, PDI Certified, UPC Listed
