1319894

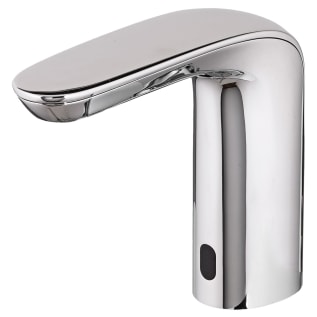

American Standard 7755105.002 NextGen™ Selectronic® Integrated Proximity Lavatory Faucet, 0.5 gpm, 8 in Center, Polished Chrome, Lithium Battery, Import
Sensoring/Touchless Faucets
MPN: 1319894 4651318 MFG #: 7755105.002
465.00000 / ea
  • Center Distance: 8
  • Collection: Nextgen™ Selectronic®
  • Connection Size: 3/8
  • Connection Type: Compression
  • Dimensions: 1-7/8 in W x 5-3/4 in H
  • Domestic/Import: Import
  • Finish/Color: Polished Chrome
  • Flow Rate: 0.5
  • Hose Size: 24 in L
  • Material: Cast Brass
  • Maximum Deck Thickness: 1-1/2
  • Mounting Type: Deck
  • Number of Faucet Holes: 1
  • Power Source: Lithium Battery
  • Spout Height: 5
  • Spout Reach: 6-7/8
  • Spray Pattern: Multi-Laminar
  • Valve/Cartridge Type: Solenoid Valve

American Standard Integrated Proximity Lavatory Faucet, NextGen™ Selectronic®, 0.5 gpm, 8 in Center Distance, 6-7/8 in Spout Reach, 5 in Spout Height, 24 in L Hose, Lithium Battery, 3/8 in, Compression, 1 Faucet Hole, Spray Pattern: Multi-Laminar, 1-1/2 in Maximum Deck Thickness, Deck Mount, Solenoid Valve Valve/Cartridge, 1-7/8 in W x 5-3/4 in H, Cast Brass, Polished Chrome, Import

These design-matched Deck Plates for the NextGen Selectronic Commercial Bathroom faucets from American Standard allow for installation on 8" centers. Innovative fixation bolts with quick spin nuts secure the plate on the deck for easy installation.

QTY
  • Features
  • Design matched for NextGen™ Selectronic® faucets
  • 1/4 in fixation bolts with quick spin nuts secure plate to the deck
  • Fixation screw prevents the spout from rotating
  • Simple, integrated design with all electronics contained in the faucet spout
  • Faucet installs from the top, no control box below deck
  • Battery and solenoid valve easily accessible after removing cover
  • Fail-safe faucet automatically shuts off upon loss of power or dead battery, no reset required
  • 0.35 gpm saves 84% of water usage when compared to a 2.2 gpm faucet
  • 0.5 gpm saves 77% of water usage when compared to a 2.2 gpm faucet
  • 1.5 gpm saves 32% of water usage when compared to a 2.2 gpm faucet
  • 0.5 gpm pressure-compensating, Vandal-resistant multi-laminar spray
  • Standard/Approvals: ADA Compliant, ANSI A117.1, ASME A112.18.1, ASSE 1070-2015, NSF 61/372
  • WARRANTY: Lifetime Limited
