1027716

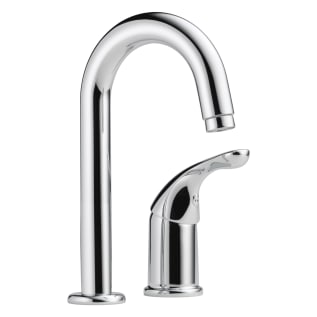

DELTA® 1903-DST Classic Bar/Prep Faucet, 1.5 gpm, 1 Handle, Chrome Plated, Domestic
Bar & Prep Faucets
MPN: 1027716 3319427 MFG #: 1903-DST
242.60000 / ea
  • Collection: Classic
  • Connection Size: 3/8
  • Connection Type: Compression
  • Dimensions: 10 in H x 5 in W x 5 in D
  • Domestic/Import: Domestic
  • Faucet Hole Size: 1-1/2
  • Finish/Color: Chrome Plated
  • Flow Rate: 1.5
  • Handle Style: Lever
  • Material: Brass
  • Maximum Deck Thickness: 2-1/2
  • Mounting Type: Deck
  • Number of Faucet Holes: 2
  • Number of Handles: 1
  • Spout Height: 10
  • Spout Reach: 5
  • Spout Type: Swivel
  • Valve/Cartridge Type: Euromotion DIAMOND™

DELTA® Bar/Prep Faucet, Classic, 1.5 gpm, Swivel Spout, 5 in Spout Reach, 10 in Spout Height, Lever Handle, 1 Handle, 2 Faucet Holes, 1-1/2 in Faucet Hole, 3/8 in, Compression, 2-1/2 in Maximum Deck Thickness, Deck Mount, Euromotion DIAMOND™ Valve/Cartridge, 10 in H x 5 in W x 5 in D, Brass, Chrome Plated, Domestic

Designed for performance, the Classic Bath Collection provides smart technology that will stand the test of time.

QTY
  • Features
  • Diamond™ Seal® technology features a valve embedded with diamonds to ensure like new operation for the life of the faucet
  • 2-hole 4 in installation
  • High-arc spout swivels 180 deg
  • Solid brass fabricated body
  • Lever handle shall return to neutral position when faucet is turned off
  • Red and blue button on handle to indicate hot cold temperature
  • Control mechanism shall be the diamond coated ceramic cartridge
  • Pex® hose installation
  • 3/8 in O.D. straight, staggered PEX supple tubes - 35 in (889 mm) and 36 in (914 mm) long - with 3/8 in compression fittings
  • 1.5 gpm at 60 ps
  • Standard/Approvals: ADA Compliant, ASME A112.18.1, ASME A112.18.6, CSA B125.1, ICC/ANSI A117.1, No-Lead Compliant, Water-Efficient
  • WARRANTY: Limited Lifetime
