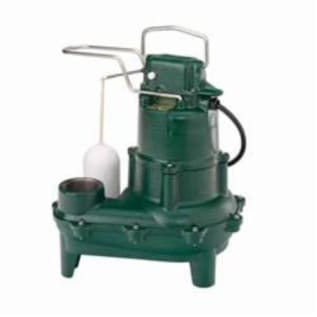

Zoeller® 264-0002 Waste-Mate 264 1-Seal Submersible Pump, 4/10 hp, 115 VAC, 2 in NPT Outlet, Cast Iron, 9.4 A, 1 ph
Zoeller® Submersible Pump, 1-Seal, Series: Waste-Mate 264, 90 gpm, 2 in NPT Outlet, 18 ft Maximum Head, 4/10 hp, 115 VAC, 9.4 A, 60 Hz Frequency, 1 ph ph, 1725 rpm Motor, 3-Wire Cord, Non-Clogging Vortex Impeller, 130 deg F, Sleeve Bearing, Cast Iron, 14-3/4 in H Dimensions
- Float-operated and submersible (NEMA 6)
- 2-pole switch
- Switch cap, motor and pump housing are durable cast iron construction
- Engineered plastic base
- Stainless steel screws, bolts, handle, guard, arm and seal assembly
- Corrosion-resistant, powder coated epoxy finish
- Hermetically-sealed automatic reset thermal overload protection
- Upper and lower sleeve bearings running in bath of oil
- Carbon and ceramic shaft seal
- Passes 2 in spherical solids
- On point - 12-1/2 in, off point - 4-1/2 in
- Non-automatic operation
- 15 ft L cord
- Permanent split capacitor motor
- Class B insulation
- Standard/Approvals: cCSAus Certified|SSPMA Certified|UL Listed
Zoeller® Submersible Pump, 1-Seal, Series: Waste-Mate 264, 90 gpm, 2 in NPT Outlet, 18 ft Maximum Head, 4/10 hp, 115 VAC, 9.4 A, 60 Hz Frequency, 1 ph ph, 1725 rpm Motor, 3-Wire Cord, Non-Clogging Vortex Impeller, 130 deg F, Sleeve Bearing, Cast Iron, 14-3/4 in H Dimensions
Considered one of America's most popular sump pumps. This robust family of sump pumps is known for reliability, durability and performance. The preset, integral snap-action float switch is engineered for one million mechanical starts. The heat-dissipating cast iron body with epoxy powder coated finish provides maximum pumping performance under the most extreme conditions. With Zoeller® cool run design, the hermetically sealed, oil-filled motor and non-clogging vortex impeller add up to a long-lasting, trouble-free product.
- Brand: Zoeller®Amperage Rating: 9.4Bearing Type: SleeveCord Type: 3-WireDimensions: 14-3/4 in HFlow Rate: 90Frequency Rating: 60Horsepower: 4/10Impeller Type: Non-Clogging VortexMaterial: Cast IronMaximum Head: 18Motor Speed: 1725Outlet Size: 2 in NPTSeries: Waste-Mate 264Temperature Rating: 130Type: 1-SealVoltage Rating: 115Phase: 1
