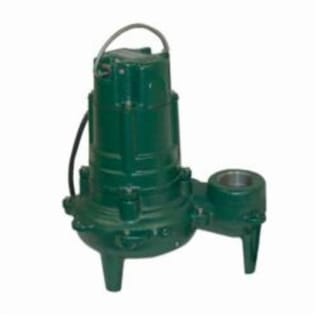

Zoeller® 270-0002 Waste-Mate 270 1-Seal Submersible Pump, 1 hp, 115 VAC, 2 in NPT Outlet, Cast Iron, 15 A, 1 ph
Zoeller® Submersible Pump, 1-Seal, Series: Waste-Mate 270, 132 gpm, 2 in NPT Outlet, 29 ft Maximum Head, 1 hp, 115 VAC, 15 A, 60 Hz Frequency, 1 ph ph, 3450 rpm Motor, 3-Wire Neoprene Cord, Non-Clogging Vortex Impeller, 130 deg F, Upper Sleeve/Lower Ball Bearing, Cast Iron, 14-21/32 in H Dimensions
- Durable, ASTM Class 25 cast iron motor housing cover and pump housing
- Engineered plastic base on model 270
- Not affected by materials normally found in drainage and sewage sumps
- Stainless steel screws, bolts and handle
- Oil filled, hermetically-sealed, automatic reset thermal overload protected motor
- Neoprene square ring and gasket
- Carbon and ceramic shaft seal
- Upper sleeve bearing and lower ball bearing running in bath of oil
- Passes 2 in spherical solids
- Corrosion-resistant, powder coated epoxy finish
- Non automatic Operation
- 20 ft L cord
- Permanent split capacitor motor
- Class B insulation
- Standard/Approvals: cCSAus Certified|SSPMA Certified|UL Listed
Zoeller® Submersible Pump, 1-Seal, Series: Waste-Mate 270, 132 gpm, 2 in NPT Outlet, 29 ft Maximum Head, 1 hp, 115 VAC, 15 A, 60 Hz Frequency, 1 ph ph, 3450 rpm Motor, 3-Wire Neoprene Cord, Non-Clogging Vortex Impeller, 130 deg F, Upper Sleeve/Lower Ball Bearing, Cast Iron, 14-21/32 in H Dimensions
Considered one of America's most popular sump pumps. This robust family of sump pumps is known for reliability, durability and performance. The preset, integral snap-action float switch is engineered for one million mechanical starts. The heat-dissipating cast iron body with epoxy powder coated finish provides maximum pumping performance under the most extreme conditions. With Zoeller® cool run design, the hermetically sealed, oil-filled motor and non-clogging vortex impeller add up to a long-lasting, trouble-free product.
- Brand: Zoeller®Amperage Rating: 15Bearing Type: Upper Sleeve/Lower BallCord Type: 3-Wire NeopreneDimensions: 14-21/32 in HFlow Rate: 132Frequency Rating: 60Horsepower: 1Impeller Type: Non-Clogging VortexMaterial: Cast IronMaximum Head: 29Motor Speed: 3450Outlet Size: 2 in NPTSeries: Waste-Mate 270Temperature Rating: 130Type: 1-SealVoltage Rating: 115Phase: 1
