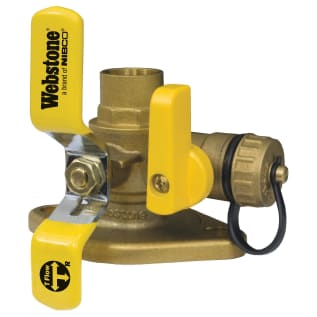

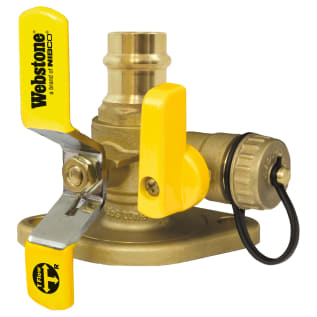

Webstone The Isolator® 51413 5141 Standard Uni-Flange Ball Valve, 3/4 in Nominal, C x Rotating Flanged End Style, Forged Brass Body, Full Port, PTFE Softgoods, Import
Webstone The Isolator®, 51413, Ball Valve, Standard Uni-Flange, Series: 5141, 3/4 in Nominal, C x Rotating Flanged End Style, 600 psi CWP Pressure, 100 deg F, Full Port, Media: Glycol Mixture/Oil/Water, 3/4 in Orifice, T-Handle Actuator, 3 in Inlet to Outlet Length, 2-1/4 in Top to Inlet Center, Forged Brass Body, PTFE Softgoods, 3 in H Dimensions, Import
- The features and benefits you trust in our original Isolator® line with two versatile enhancements
- 3-way ball purges before or after the pump
- Eliminate seven leak path
- Unique uni-body design is preserved
- Compatible with popular press tools
- Ball valve with integral spring check saves labor, space, and leak paths
- Guaranteed for life
- Save 63 minute of labor
- Replace eight component
- Fits virtually any standard circulator pump
- Flange feature a conical inlet to minimize turbulence
- Easily isolate the pump for replacement
- Prevent electrolysis and eliminate galvanic corrosion
- Blow-out proof stem
- First, 360 deg flange rotation that allows for rotation to any deg necessary for your installation
- Rotating Flange is Secured by a Snug-Fit Snap-Ring that Provides Greater Control Over Positioning During Installation
- Multi-Function Drain Makes the Isolator the Only Valve That Drains From Either Side of the Pump
- Available in Lead-Free
- Multi-Function Drain Makes the Isolator the Only Valve That Drains From Either Side of the Pump
- Standard/Approvals: ASME B16.18
- INCLUDES: Adjustable Packing Gland, Nuts and Bolts
- WARRANTY: Lifetime
Webstone The Isolator®, 51413, Ball Valve, Standard Uni-Flange, Series: 5141, 3/4 in Nominal, C x Rotating Flanged End Style, 600 psi CWP Pressure, 100 deg F, Full Port, Media: Glycol Mixture/Oil/Water, 3/4 in Orifice, T-Handle Actuator, 3 in Inlet to Outlet Length, 2-1/4 in Top to Inlet Center, Forged Brass Body, PTFE Softgoods, 3 in H Dimensions, Import
Designed for residential, commercial or industrial use with water or a glycol mixture. This approved Webstone valve is actuated by a blow-out proof stem and features an adjustable packing gland. Flange features a conical inlet to minimize turbulence. The rotating flange is secured by a snug-fit snap-ring that provides greater control over positioning during installation. Solder joint temperature ratings are per ASME B16.18 Annex A for 95-5 solder. Other solder materials have lower pressure/temperature limits. Do not silver braze or overheat valves when soldering.
- Brand: WebstoneActuator Type: Lever OperatedBall Material: HCP BrassBody Material: Forged BrassEnd Style: C x Rotating FlangedInlet to Outlet Length: 3Media: Water/Glycol MixtureNominal Size: 3/4Port Type: FullPressure Rating: 600 psig WOGSeries: 5141Softgoods Material: PTFETemperature Rating: 100Top to Inlet Center: 2/7/2016Trim Material: Brass Stem and PTFE Seat
