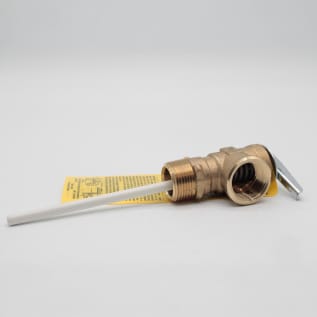

WATTS® 0556000 LF100XL Self-Closing Temperature/Pressure Relief Valve, 3/4 in Nominal, MNPT x FNPT End Style, 150 psi Pressure, Copper Alloy Body, Domestic
WATTS®, 0556000, Temperature/Pressure Relief Valve, Self-Closing, Series: LF100XL, 3/4 in Nominal, MNPT x FNPT End Style, 150 psi Pressure, 210 deg F, Media: Water, Test Lever Actuator, Copper Alloy Body, Stainless Steel Spring Trim, Domestic
- Thermostat is accurate and proven exclusively designed and manufactured by WATTS
- Extension thermostat with thermo-bonded coating
- Maximum system operating pressure must not exceed 75% of valve set pressure
- Stainless steel spring
- Standard/Approvals: ASME Specified|CSA Certified | PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
- WARRANTY: Limited
WATTS®, 0556000, Temperature/Pressure Relief Valve, Self-Closing, Series: LF100XL, 3/4 in Nominal, MNPT x FNPT End Style, 150 psi Pressure, 210 deg F, Media: Water, Test Lever Actuator, Copper Alloy Body, Stainless Steel Spring Trim, Domestic
Series LF100XL Temperature and Pressure Relief Valves are used in water heater and hot water storage tank applications to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 BTU/hr. They feature a Lead Free* copper alloy body with NPT male inlet and NPT female outlet connections, unique thermostat with special thermo-bonded coating, and a test lever. Model LF100XL-8 is also available with 8 in. (200mm) extension thermostat. Series LF100XL is ASME rated and CSA listed. Temperature Relief: 210 deg F (99 deg C), Pressure Relief Range: 75 to 150psi (5.2 to 10.3 bar), Standard Pressure Settings: 75, 100, 125, or 150psi (5.27, 7.03, 8.79, or 10.55 bar).
- Brand: WATTS®Body Material: Copper AlloyDomestic/Import: DomesticEnd Style: MNPT x FNPTMedia: WaterNominal Size: 3/4Pressure Rating: 150Series: LF100XLTemperature Rating: 210
WATTS® 0556000 LF100XL Self-Closing Temperature/Pressure Relief Valve, 3/4 in Nominal, MNPT x FNPT End Style, 150 psi Pressure, Copper Alloy Body, Domestic
WATTS®, 0556000, Temperature/Pressure Relief Valve, Self-Closing, Series: LF100XL, 3/4 in Nominal, MNPT x FNPT End Style, 150 psi Pressure, 210 deg F, Media: Water, Test Lever Actuator, Copper Alloy Body, Stainless Steel Spring Trim, Domestic
