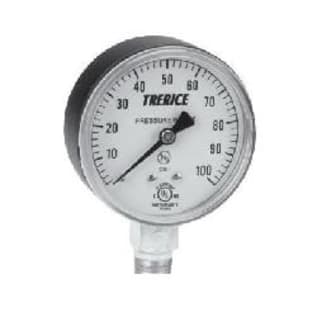

Trerice 800B2502LA60 800B Dry Utility Pressure Gauge, 0 to 60 psi Pressure, 1/4 in MNPT Connection, 2-1/2 in Dia Dial, 1.6 % Accuracy
Trerice Utility Pressure Gauge, Dry, Series: 800B, 0 to 60 psi, 1/4 in MNPT, 2-1/2 in Dial Diameter, 1.6 % Accuracy, 180 deg F, Lower Mount, Steel Case, Black, 2.48 in Dia x 1.16 in D
Documents
- Plain, black finished pointer
- Acrylic window
- Drawn steel, black finished, stem-mounted flangeless case
- Aluminum/white background with black graduations and markings dial face
- Brass movement
- Standard/Approvals: ASME B40.100|cULus Water Quality MH59892|NSF/ANSI 372/61
- WARRANTY: 1 Year
Trerice Utility Pressure Gauge, Dry, Series: 800B, 0 to 60 psi, 1/4 in MNPT, 2-1/2 in Dial Diameter, 1.6 % Accuracy, 180 deg F, Lower Mount, Steel Case, Black, 2.48 in Dia x 1.16 in D
The trerice 800B utility gauge is designed for general pressure indication requirements. This gauge provides reliable service at an economical cost. Wetted parts are bronze tube and Lead-Free (PBF) brass socket.
- Brand:Â TrericeAccuracy:Â 1.6Color:Â BlackConnection Size:Â 1/4 in MNPTDial Diameter:Â 2-1/2Dimensions:Â 2.48 in Dia x 1.16 in DMaterial:Â Steel CaseMounting Type:Â LowerPressure Range:Â 0 to 60Series:Â 800BTemperature Rating:Â 180Type:Â Dry
Trerice 800B2502LA60 800B Dry Utility Pressure Gauge, 0 to 60 psi Pressure, 1/4 in MNPT Connection, 2-1/2 in Dia Dial, 1.6 % Accuracy
Trerice Utility Pressure Gauge, Dry, Series: 800B, 0 to 60 psi, 1/4 in MNPT, 2-1/2 in Dial Diameter, 1.6 % Accuracy, 180 deg F, Lower Mount, Steel Case, Black, 2.48 in Dia x 1.16 in D
