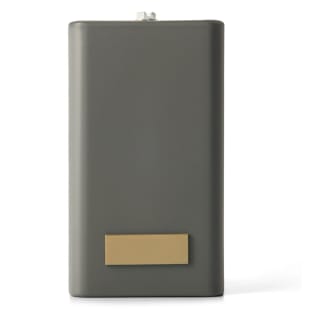

Resideo L4080B1352/U Immersion Aquastat Controller, 120 to 240 VAC, 100 to 200 deg F, 4 to 48 A, 8 deg F Differential, Vertical Mount
Resideo Aquastat Controller, Immersion, Series: L4080B, 120 to 240 VAC, 100 to 200 deg F, 4 to 48 A, 8 deg F Differential, Vertical Mount, 1/2-14 or 3/4-14 in NPT Spud, Second Limit (Bimetal Switch) Switch, 1-1/2 or 3 in Insulation Depth, 2-1/2 in Width, 3-7/8 in Height
- Totally enclosed Micro Switch™ snap-acting switches operate on temperature rise to setpoint
- Visible control point scale and external adjustment screw permit easy setting
- Horizontal or vertical insertion of the sensing element
- Remote bulb model may be used to sense air temperature in ducts and in outside air sensing applications
- UL limit rated device
- Models available for strap-on mounting
- Standard/Approvals: UL Listed: models with well, File No. MP466, Guide No. MBPR|AGA Design Certified: Test Report 2311B
- INCLUDES: Siphon Loop
Resideo Aquastat Controller, Immersion, Series: L4080B, 120 to 240 VAC, 100 to 200 deg F, 4 to 48 A, 8 deg F Differential, Vertical Mount, 1/2-14 or 3/4-14 in NPT Spud, Second Limit (Bimetal Switch) Switch, 1-1/2 or 3 in Insulation Depth, 2-1/2 in Width, 3-7/8 in Height
- Brand: Resideo
Resideo L4080B1352/U Immersion Aquastat Controller, 120 to 240 VAC, 100 to 200 deg F, 4 to 48 A, 8 deg F Differential, Vertical Mount
Resideo Aquastat Controller, Immersion, Series: L4080B, 120 to 240 VAC, 100 to 200 deg F, 4 to 48 A, 8 deg F Differential, Vertical Mount, 1/2-14 or 3/4-14 in NPT Spud, Second Limit (Bimetal Switch) Switch, 1-1/2 or 3 in Insulation Depth, 2-1/2 in Width, 3-7/8 in Height
