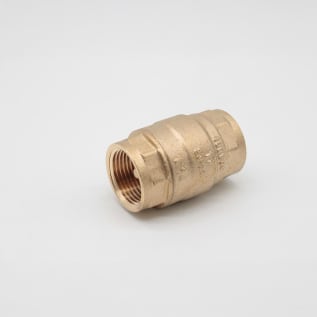

RWV® 232AB 3/4 In-Line Check Valve, 3/4 in Nominal, Thread End Style, 200 lb WOG, Forged Brass Body
RWV® In-Line Check Valve, Series: 232AB, 3/4 in Nominal, Thread End Style, 200 psi Pressure, 200 lb WOG Pressure Class, 15 to 160 deg F, Yes Low Lead Compliance, Spring-Loaded Latch-Lock Handle Actuator, 2.09 in Inlet to Outlet Length, Forged Brass Body, NBR/POM Trim, NBR Gasket Softgoods, 1.46 in Dia Dimensions
Documents
- Horizontal or vertical installation
- Low noise operation
- Standard/Approvals: AB1953|ANSI/NSF 61-G/372|CW510L Body and NSF Approved Disc Body/Gasket/Disc Seat
RWV® In-Line Check Valve, Series: 232AB, 3/4 in Nominal, Thread End Style, 200 psi Pressure, 200 lb WOG Pressure Class, 15 to 160 deg F, Yes Low Lead Compliance, Spring-Loaded Latch-Lock Handle Actuator, 2.09 in Inlet to Outlet Length, Forged Brass Body, NBR/POM Trim, NBR Gasket Softgoods, 1.46 in Dia Dimensions
- Brand: RWV®Actuator Type: Spring-Loaded Latch-Lock HandleBody Material: Forged BrassDimensions: 1.46 in DiaEnd Style: ThreadInlet to Outlet Length: 2.09Low Lead Compliance: YesNominal Size: 3/4Pressure Class: 200 lb WOGPressure Rating: 200Series: 232ABSoftgoods Material: NBR GasketTemperature Rating: 15 to 160Trim Material: NBR/POM
RWV® 232AB 3/4 In-Line Check Valve, 3/4 in Nominal, Thread End Style, 200 lb WOG, Forged Brass Body
RWV® In-Line Check Valve, Series: 232AB, 3/4 in Nominal, Thread End Style, 200 psi Pressure, 200 lb WOG Pressure Class, 15 to 160 deg F, Yes Low Lead Compliance, Spring-Loaded Latch-Lock Handle Actuator, 2.09 in Inlet to Outlet Length, Forged Brass Body, NBR/POM Trim, NBR Gasket Softgoods, 1.46 in Dia Dimensions
