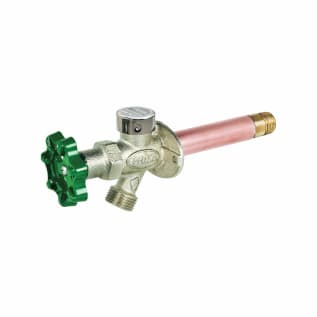

Prier® C-144D04 Diamond C-144 Freezeless Wall Hydrant With Anti-Siphon Vacuum Breaker, 1/2 in, MNPT x C, 360 deg Full Turn Wall Opening, Domestic
Prier® Wall Hydrant, Freezeless, Series: Diamond C-144, 1/2 in Nominal, MNPT x C, 360 deg Full Turn, 4 in Insertion Length, Solid Brass, Satin Nickel Plated, Domestic
Documents
- Anti-siphon vacuum breaker with backflow check valve
- Aluminum vacuum breaker cap with increased durability
- Integral cast flange with built-in drainage pitch
- Enclosed screw holes easily secure mounting screws
- Solid brass body, valve stem cap, seat and stem ends
- Durable ACME threads secure stem at seat end
- Stainless steel seat washer screw and handle screw
- Powder coated cast aluminum handle
- Lock shield cap for stronger valve design
- AFG teflon with graphite packing for easy maintenance
- Standard OO size seat washer
- Spout aligning mark
- Slim seat inlet for easier installation
- Handle operated wall hydrant
- 360 deg full turn opening
- Standard/Approvals: ASSE 1019|cUPC Listed
Prier® Wall Hydrant, Freezeless, Series: Diamond C-144, 1/2 in Nominal, MNPT x C, 360 deg Full Turn, 4 in Insertion Length, Solid Brass, Satin Nickel Plated, Domestic
PRIER C-144 provides a year round source of water to areas of structures that are subject to freezing temperatures. The hydrant valve is connected to the supply piping in the heated portion of the structure, eliminating the possibility of freezing. Ordering the C-244 gives you the same style hydrant but with a vandal proof extended lockshield and operating key. The PRIER C-144 has all the characteristics of the historically proven C-134 with the added protection of an anti-siphon vacuum breaker and backflow check valve.
- Brand: Prier®Domestic/Import: DomesticEnd Style: MNPT x CFinish: Satin Nickel PlatedLength: 4 in InsertionMaterial: Solid BrassNominal Size: 1/2Series: Diamond C-144Type: Freezeless
