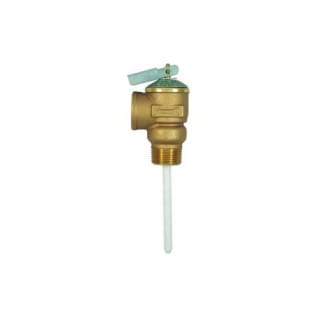

Cash Acme® 16372 NCLX-8 Temperature and Pressure Relief Valve, 3/4 in Nominal, MNPT x FNPT End Style, 150 psi Pressure, Bronze Body
Cash Acme® Temperature and Pressure Relief Valve, Series: NCLX-8, 3/4 in Nominal, MNPT x FNPT End Style, 150 psi Pressure, 210 deg F, Media: Hot Water, Lever Operated Actuator, 1-9/16 in Top to Inlet Center, Bronze Body, Silicon Seat Disc Softgoods
Documents
- Provides temperature and pressure protection for domestic water heater and storage tanks
- Incorporates an inert thermal element coating: Provides effective isolation from mineral deposits (liming) and galvanic corrosion
- Completely automatic and reseats after temperature or pressure relief: Ideal for all domestic water heater applications
- Every valve is tested for performance prior to shipping: Specify and install with confidence
- 150 psi factory setting
- Standard/Approvals: ANSI Z21.22/CSA 4.4|ASME Boiler Code Section IV
- WARRANTY: 2 Years
Cash Acme® Temperature and Pressure Relief Valve, Series: NCLX-8, 3/4 in Nominal, MNPT x FNPT End Style, 150 psi Pressure, 210 deg F, Media: Hot Water, Lever Operated Actuator, 1-9/16 in Top to Inlet Center, Bronze Body, Silicon Seat Disc Softgoods
The NCLX incorporates an inert thermal element coating that provides effective isolation from mineral deposits (liming). The NCLX features include a cast bronze body, brass and stainless steel internal parts, silicone seat disc and stainless steel spring. The NCLX comes standard with a test lever. The valve is completely automatic and reseats after either temperature or pressure relief. The NCLX is available in male inlets and female outlets with several options in shank and element lengths.
- Brand: Cash Acme®
Cash Acme® 16372 NCLX-8 Temperature and Pressure Relief Valve, 3/4 in Nominal, MNPT x FNPT End Style, 150 psi Pressure, Bronze Body
Cash Acme® Temperature and Pressure Relief Valve, Series: NCLX-8, 3/4 in Nominal, MNPT x FNPT End Style, 150 psi Pressure, 210 deg F, Media: Hot Water, Lever Operated Actuator, 1-9/16 in Top to Inlet Center, Bronze Body, Silicon Seat Disc Softgoods
