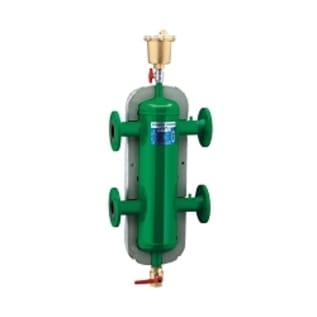

Caleffi 548066A Hydraulic Separator, 1 in Nominal, Press Connection, 150 psi Working, 32 to 210 deg F, Steel
Caleffi Hydraulic Separator, Series: 548, 1 in Nominal, Press, 150 psi Working, 32 to 210 deg F, 11 gpm, 50 % Maximum Percentage of Glycol, PE-X Insulation, Steel, 10-3/4 in W
- 300 Series stainless steel internal baffle
- Epoxy resin painted steel body
- Double density closed cell expanded PE-X
- Standard/Approvals: ANAB Accredited ISO 9001|BSI FM 21654|ICIM UNI EN ISO 9001:2008
- INCLUDES: 502343A Automatic Air Vent, 561402A Service Check Valve and 538402 FD Drain Valve
Caleffi Hydraulic Separator, Series: 548, 1 in Nominal, Press, 150 psi Working, 32 to 210 deg F, 11 gpm, 50 % Maximum Percentage of Glycol, PE-X Insulation, Steel, 10-3/4 in W
The Caleffi 548 and NA548 series hydraulic separator creates a zone with a low pressure loss, which enables connected primary and secondary circuits to be hydraulically independent of each other; the flow in one circuit does not create or interrupt flow in another. Hydraulically decoupling primary and secondary circuits eliminates pump conflict. This device includes an automatic high-capacity air vent with service valve to discharge accumulated air within the circuits.
- Brand:Â CaleffiConnection Type:Â Female Press UnionDimensions:Â 10-3/4 in WFlow Rate:Â 11Insulation Material:Â PE-XMaterial:Â SteelNominal Size:Â 1Series:Â 548Temperature Rating:Â 32 to 210Working Pressure:Â 150
Caleffi 548066A Hydraulic Separator, 1 in Nominal, Press Connection, 150 psi Working, 32 to 210 deg F, Steel
Caleffi Hydraulic Separator, Series: 548, 1 in Nominal, Press, 150 psi Working, 32 to 210 deg F, 11 gpm, 50 % Maximum Percentage of Glycol, PE-X Insulation, Steel, 10-3/4 in W
