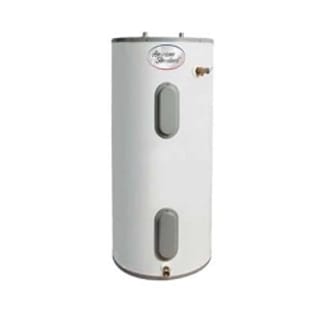

American Standard® 50315040880 EN Series Light Duty Electric Water Heater, 50 gal Tank, 240 VAC, 4500 W, 1 Phase , Tall
American Standard® Electric Water Heater, Light Duty, Series: EN Series, 50 gal Tank, 240 VAC, 18.75 A, 4500 W, 1 ph, 3/4 in NPT Top Water Connection, (2) Incoloy Heating Element, 0.94 Energy Factor, 10 AWG Wire, 21 gph at 90 deg F Rise Recovery, 150 psi, Tall or Short: Tall, ASME Yes/No: No, Glass Lined Steel, 22-1/4 in Dia x 61-1/8 in H
- Surface mount thermostats - fully automatic for temperature control, factory installed manual reset energy cut-off prevents overheating
- Double heating elements - dual screw-in heating elements transfer heat directly to water to conserve energy
- Self-cleaning - turbulence inducing cold water inlet-tube engineered to diminish hard water area sediment deposits
- Incoloy elements - are low watt density and installed into every model to operate more efficiently and last longer
- Non-CFC foam insulated - saves energy and reduces fuel costs by maximizing heat retention
- Heavy gauge steel tank - for extra years of trouble-free service
- Glass-lined tank - inner tank glass-lined with Dura-Glas™ and fired at 1600 deg F for optimum protection from the effects of corrosion
- Magnesium anode rod - to protect tank life
- Factory Installed dielectric hot and cold water connections - 3 4 in NPT water connections to extend tank life and for easier installations
- Brass drain valve (full port ball) - designed to allow easy draining and avoid clogging
- Factory installed heat traps - reduces standby heat loss in water piping
- Temperature and pressure relief valve - factory provided T and P Valve can be relocated from side to optional top opening
- Standard/Approvals: Comply with and Meets or Exceeds ASHRAE Standard 90.1 b|National Appliance Energy Conservation Act|ANSI Requirements and Tested in Accordance with D.O.E. Test Procedures|UL 174|NAECA Compliant
- WARRANTY: 6 Years Limited on Tank/Limited on Parts
American Standard® Electric Water Heater, Light Duty, Series: EN Series, 50 gal Tank, 240 VAC, 18.75 A, 4500 W, 1 ph, 3/4 in NPT Top Water Connection, (2) Incoloy Heating Element, 0.94 Energy Factor, 10 AWG Wire, 21 gph at 90 deg F Rise Recovery, 150 psi, Tall or Short: Tall, ASME Yes/No: No, Glass Lined Steel, 22-1/4 in Dia x 61-1/8 in H
- Brand: American StandardAmperage Rating: 18.75ASME Yes/No: NoDimensions: 22-1/4 in Dia x 61-1/8 in HEnergy Factor: 0.94Heating Element: (2) IncoloyMaterial: Glass Lined SteelPhase: 1Power Rating: 4500Pressure Rating: 150Recovery Rate: 21 gph at 90 deg F RiseSeries: EN SeriesTall or Short: TallTank Capacity: 50Type: Light DutyVoltage Rating: 240Water Connection: 3/4 in NPT TopWire Size: 10
