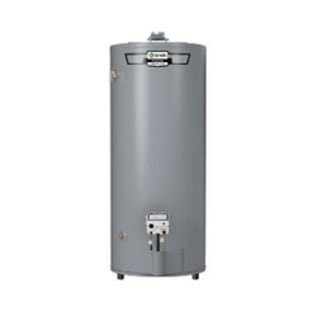

AO Smith® ProLine® 100279887 FCG-75 High Recovery Gas Water Heater, 75100 Btu/hr Heating, 74 gal Tank, Natural Gas Fuel, Atmospheric Vent, 81 gph at 90 deg F Rise Recovery, Short
AO Smith® ProLine® Gas Water Heater, High Recovery, Series: FCG-75, 75100 Btu/hr Heating, Natural Gas, 1/2 in FNPT Gas Connection, 74 gal Tank, Piezo Pushbutton Ignition, Atmospheric Vent, 4 in Vent Size, 81 gph at 90 deg F Rise Recovery, 0.6 Energy Factor, 1 in Water Connection, 150 psi, Short, Ultra Low NOx: No, 26-1/2 in Dia x 61 in H
- Highest recoveries - Capacity/input combinations up to 98 gal/75100 Btu produce recoveries up to 81 gph
- Fully automatic controls with safety shutoff - Accurate, dependable control system requires no electric connections
- Fixed automatic gas shutoff device for added safety
- Green Choice® gas burner - Patented eco-friendly burner design reduces NOx emissions by up to 33% and complies with Low-NOx emission requirements of less than 40 ng/J
- Dynaclean™ diffuser dip tube - Reduces lime and sediment build up and maximizes hot water output, made from long-lasting PEX cross-linked polymer
- Coregard™ anode rod have a stainless steel core that extends the life of the anode rod allowing superior tank protection far longer than standard anode rod
- Push button piezo igniter makes lighting the pilot fast and easy with one hand
- Nipples - Factory installed for faster installation
- Blue Diamond® glass coating - Provides superior corrosion resistance compared to the industry standard glass lining
- Enhanced-flow brass drain valve - Our residential water heaters have a solid brass, tamper resistant, enhanced flow, ball type, drain valve
- Uses a standard female hose fitting that allows for fast and easy draining during maintenance
- Designed for easy operation, this valve includes an integral screwdriver slot that features a 1/4 turn (open/close) radius, which not only permits full straight-through water flow but also a quick and positive shut off
- All models are certified from sea level to 7700 ft elevation
- Standard/Approvals: CSA Certified and ASME Specified T&P Relief Valve|Green Choice™|ANSI Z21.10.3 CSA 4.3|ASHRAE/IES 90.1|UBC/CEC/ICC National Codes|UL Listed Gas Fired
- INCLUDES: Temperature and Pressure Relief Valve
- WARRANTY: 6 Years Limited Tank and Parts
AO Smith® ProLine® Gas Water Heater, High Recovery, Series: FCG-75, 75100 Btu/hr Heating, Natural Gas, 1/2 in FNPT Gas Connection, 74 gal Tank, Piezo Pushbutton Ignition, Atmospheric Vent, 4 in Vent Size, 81 gph at 90 deg F Rise Recovery, 0.6 Energy Factor, 1 in Water Connection, 150 psi, Short, Ultra Low NOx: No, 26-1/2 in Dia x 61 in H
The ProLine® High Recovery gas water heater is designed for reliable performance, reduced NOx emissions and has 80% thermal efficiency. Featuring a 74 gal (nominal) tank and a 75100 Btu gas burner, the FCG-75 standard vent delivers a thermal efficiency of 80%, a Uniform Energy Factor of 0.6 and a recovery rate of 81 gph. It carries a 10-year limited warranty and meets Low NOx emission requirements.
- Brand: AO Smith®Dimensions: 26-1/2 in Dia x 61 in HEnergy Factor: 0.6Fuel Type: Natural GasGas Connection: 1/2 in FNPTHeating Capacity: 75100Ignition Type: Piezo PushbuttonPressure Rating: 150Recovery Rate: 81 gph at 90 deg F RiseSeries: FCG-75Tall or Short: ShortTank Capacity: 74Type: High RecoveryUltra Low NOx: NoVent Size: 4Vent Type: AtmosphericWater Connection: 1
