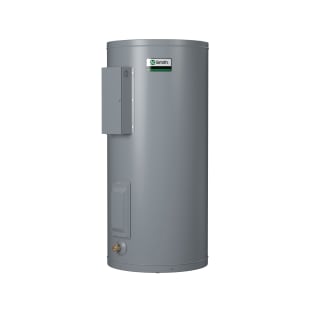

AO Smith® 100131846 Dura-Power™ DEL-20 Compact Lowboy Electric Water Heater, 19 gal Tank, 4500 W, 240 VAC, 1 ph

1434725 MFG #: 100131846
$1,325.60 / ea
AO Smith® 100131846 Dura-Power™ DEL-20 Compact Lowboy Electric Water Heater, 19 gal Tank, 4500 W, 240 VAC, 1 ph
  • ASME Yes/No: No
  • Dimensions: 21-3/4 in W x 22-1/4 in H
  • Finish: Baked Enamel
  • Heating Element: (1) Zinc Plated Copper Sheath
  • Phase: 1
  • Power Rating: 4500
  • Pressure Rating: 150
  • Recovery Rate: 51 gph at 36 deg F Rise
  • Series: Dura-Power™ DEL-20
  • Tank Capacity: 19
  • Temperature Rating: 110 to 170
  • Type: Compact Lowboy
  • Voltage Rating: 240
  • Water Connection: 3/4 in FNPT

AO Smith® Electric Water Heater, Compact Lowboy, Series: Dura-Power™ DEL-20, 19 gal Tank, 240 VAC, 4500 W, 1 ph, 3/4 in FNPT Water Connection, (1) Zinc Plated Copper Sheath Heating Element, 51 gph at 36 deg F Rise Recovery, 150 psi, 110 to 170 deg F, ASME Yes/No: No, Baked Enamel, 21-3/4 in W x 22-1/4 in H

QTY
Add to List
  • Features
  • Designed for use as a recovery heater having its own storage tank
  • Glass lined tank interior is coated with glass specially developed by AO Smith® for water heater use
  • Zinc plated copper sheath for longer life
  • Medium watt density means lower surface temperature to minimize scale build-up and more surface to heat water
  • Factory installed terminal block
  • Temperature control (adjustable through arrange of 110 to 170 deg F on single element and 120 to 181 deg F on dual element) and manual reset high temperature cut-off per element (dual element models)
  • Simplified circuitry, color coded for ease of service
  • Anode rod for maximum corrosion protection
  • Cabinet has bonderized undercoat with baked enamel finish
  • Top inlet and outlet openings
  • Standard/Approvals: ASHRAE/IESNA 90.1|CSA Certified|cULus Listed
  • WARRANTY: Limited
