Bradford White®

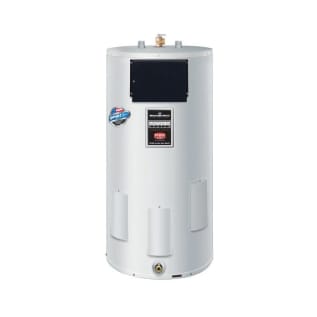

Bradford White® ElectriFLEX MD™ E32-80R3-3L18 E32-80R-3 Medium Duty Electric Water Heater, 80 gal Tank, 18 kW Power Rating, 208 VAC, 3 ph Phase, 50 A

1021141 MFG #: E32-80R3-3L18
$6,041.00 / ea
  • Amperage Rating: 50
  • ASME Yes/No: No
  • Dimensions: 24 in Dia x 26-5/8 in D x 60-1/8 in H
  • Domestic/Import: Domestic
  • Heating Element: (3) Incoloy®
  • Material: Steel
  • Phase: 3
  • Power Rating: 18
  • Pressure Rating: 150
  • Recovery Rate: 186
  • Series: E32-80R-3
  • Tank Capacity: 80
  • Temperature Rating: 180
  • Type: Medium Duty
  • Voltage Rating: 208
  • Water Connection: 1-1/4 in NPT

Bradford White® ElectriFLEX MD™ Electric Water Heater, Medium Duty, Series: E32-80R-3, 80 gal Tank, 208 VAC, 50 A, 18 kW Power, 3 ph, 1-1/4 in NPT Water Connection, (3) Incoloy® Heating Element, 186 gph Recovery Rate, 150 psi Pressure, 180 deg F, ASME Yes/No: No, Steel, 24 in Dia x 26-5/8 in D x 60-1/8 in H Dimensions, Domestic

The Medium Duty models come in 80 gal capacity tanks with an inputs as high as 18 kW. Perfect for mid sized commercial applications without breaking the bank. They are also field convertible for various wiring configurations.

QTY
  • Features
  • Fully automatic control: Designed to provide outlet water at a thermostatically controlled temperature greater than 180 deg F
  • Direct heat transfer with immersed INCOLOY® element(s): Transfers heat directly and efficiently to the water
  • Screw-in style element
  • Factory installed Hydrojet® sediment reduction system
  • Vitraglas® lining
  • Vitraglas® is fused to the steel surface by firing at a temperature of over 1600 deg F
  • 2 in Non-CFC foam insulation: Covers the sides and top of tank, reducing the amount of heat loss
  • Results in less energy consumption, improved operation efficiencies and jacket rigidity
  • Water connection - 1-1/4 in NPT factory installed true dielectric fittings extend water heater life and simplify water line connections
  • Protective magnesium rod: Provides added protection against corrosion for long trouble free service
  • Steel tank: Heavy gauge steel automatically formed, rolled and welded to assure a continuous seam for glass lining
  • Low restriction brass drain valve: Durable tamper proof design
  • Medium duty upright 3 element electric water heater
  • Hydrojet® total performance system
  • Field convertible
  • Standard/Approvals: AHRI Certified|ASHRAE 90.1b|CEC Listed|cETLus Listed|CSA Certified|CSAE Certified|Massachusetts Approved|NSF 372|UL 1453|UL 174|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
  • INCLUDES: Temperature and Pressure Relief Valve
  • WARRANTY: 3 Years Limited on Tank/1 Year Limited on Componen
