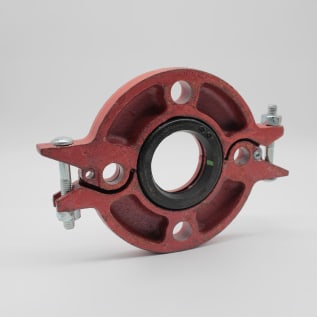

Gruvlok® 0390201002 FIG 7012 Pipe Flange With Grade E EPDM Gasket, 2 in Nominal, Ductile Iron, Grooved Connection, Domestic

1383682 MFG #: 0390201002
$564.03 / ea
Gruvlok® 0390201002 FIG 7012 Pipe Flange With Grade E EPDM Gasket, 2 in Nominal, Ductile Iron, Grooved Connection, Domestic
  • Bolt Circle Diameter: 4-3/4
  • Bolt Hole Size: 3/4
  • Connection Type: Grooved
  • Domestic/Import: Domestic
  • Finish: Rust Inhibiting Painted
  • Material: Ductile Iron
  • Nominal Size: 2
  • Number of Bolt Holes: 4
  • Outside Diameter: 2-3/8
  • Pressure Rating: 300
  • Series: FIG 7012
  • Temperature Rating: -40 to 230
  • Color: Orange
  • Thickness: 3/4

Gruvlok® Pipe Flange, Series: FIG 7012, 2 in Nominal, 3/4 in Thickness, 4-3/4 in Bolt Circle, 4 Bolt Holes, 3/4 in, Grooved, 2-3/8 in Outside Dia, 300 psi, -40 to 230 deg F, Ductile Iron, Rust Inhibiting Orange Painted, OrangeDomestic

The Gruvlok® Fig. 7012 Flange allows direct connection of Class 125 or Class 150 flanged components to a grooved piping system. The two interlocking halves of the 2 thru 12 in sizes of the Gruvlok® Flange are hinged for ease of handling, and are d

QTY
Add to List
  • Features
  • 110 to 140 ft-lb torque
  • 5/8 x 2-3/4 in mating flange bolt
  • SAE J429, grade 5, zinc electroplated, ISO 898-1, class 8.8, zinc electroplated followed by a yellow chromate dip latch bolt
  • ASTM A563, grade A, zinc electroplated, ISO 898-2, class 8.8, zinc electroplated followed by a yellow chromate dip latch nut
  • Grade E EPDM gasket, recommended for water service, diluted acids, alkalies solutions, oil-free air and many other chemical services and not for use in petroleum applications
  • Standard/Approvals: ASTM A 536|Grade 65-45-12 Housing|cULus Listed|FM Approved|LPCB Approved|NSF/ANSI 61|UPC Listed
